Medium Voltage Harness Test SAIMR6000
Product Description

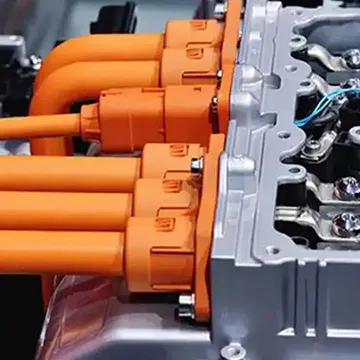

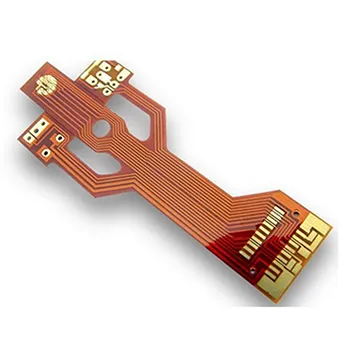

New energy battery CCS, FPC;

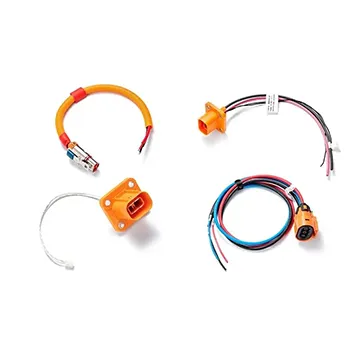

Aviation, aerospace, military, wiring harness, connector:
The serial mode is suitable for more industries.
DC3000V, AC2000V;
One-stop test for multiple test items;
Insulation resistance test upper limit 50GΩ, four-wire resistance resolution 0.1μΩ;
The system adopts two-wire and four-wire mixed test, with higher measurement accuracy and faster speed;
Number of test points: distributed structure (32 points/test card):
Serial can be expanded to more than 20,000 points and more;
Test items: (OS, two-wire resistance, four-wire resistance, NTC resistance, insulation resistance, AC withstand voltage, DC withstand voltage)
Self-learning loop quickly generates test file groups;
Scan code test to customize print labels:
Customizable plug-in MES docking:
User authority management, three-level management settings;
Any point can be edited, and test files can be exported and imported;
Data reports support CSV XLSXPDF and WORD format export
|
Medium Voltage Test |
SAIMR6000 |
||
|
Test Mode |
4- wire or 2-wire (can be mixed test) |
||
|
Number of Points |
32/64/128/256/512/1024…20480（The number of points can be expanded.） |
||
|
Test Project |
Test Range |
Test Accuracy |
|
|
OS Test (Voltage 5V) |
2 KΩ -200 KΩ (optional 20 KΩ -1000 KΩ) |
±5% |
|
|
Insulation Resistance Test |
1MΩ-50GΩ(30V-2000V) |
1MΩ~100MΩ: ±2% |
|
|
100MΩ~ 1GΩ: ±5% |
|||
|
1GΩ~ 10GΩ: ±10% |
|||
|
DC Resistance Test |
0.1Ω-1MΩ |
<100k: ±1% |
|
|
>100k: ±5% |
|||
|
Four-wire DC Resistance Test |
10μΩ~100Ω |
±0.1%+3μΩ |
|
|
Four-wire NTC Test (10k, 100k) |
Temperature Judgment (accuracy 0.1°C) |
Users can self-defined RT table for resistance and temperature judgment |
|
|
Resistance Judgment (accuracy 10k: 1% 100k: 5%) |
The resistance value can be judged according to the real -time temperature of the environment |
||
|
Comparison Judgment (accuracy 0.1°C) |
Maximum resistance difference between tested and standard parts (Range) |
||
|
AC Hi-pot Test |
30V-2000V |
±2% |
|
|
DC Hi-pot Test |
30V-3000V |
±2% |
|
|
AC Leakage Current Test |
1μA-5mA（optional 10mA） |
±3% |
|
|
DC Leakage Current Test |
0.1μA-5mA |
±3% |
|
|
Dimensions (in mm) |
483*265*510 (1024P) |
483*183*510 (512P) |
|
|
Maximum Weight (in kg） |
26 |
18 |
|
|
Storage |
It depends on the computer's memory. |
||
|
Protocol |
SCPI |
||
|
Specification |
220V/350W |
||
|
Standard Configuration |
User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen. |
|
|
|
Optional Configuration |
Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer |
|
|
