Connector Wiring Harness Testing System

SAIMR offers the Connector Wiring Harness Testing System, a high-precision, multifunctional testing solution designed for electrical cables, wiring harnesses, and connectors. Ideal for aerospace, aviation, automotive, railway, military, and high-end industrial applications, this system provides comprehensive testing for high-voltage cables, wiring harnesses, connectors, and lithium battery PACKs, ensuring product quality and electrical safety.

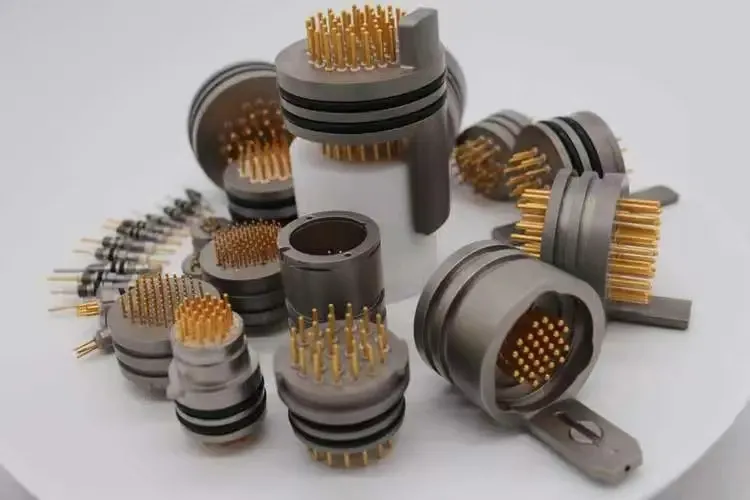

Application Areas of Connector Wiring Harness Testing System

Ships, Aerospace, Military Equipment: Ensures high reliability of critical wiring harnesses and connectors, reducing the risk of equipment failure.
Metro, High-Speed Rail, Electric Vehicles, and New Energy Vehicles: Tests high-voltage cables, charging guns, and complex wiring harnesses, reducing rework and improving production efficiency.
High-Voltage Cables and Lithium Battery PACKs: Conducts insulation, resistance, and voltage withstand tests to guarantee electrical safety and stable performance.
Quality Management & Production Optimization: Intelligent data recording and analysis enables traceability and process improvement, ensuring consistent product quality.

Advantages of Connector Wiring Harness Testing System

One-Stop Multi-Item Testing: Performs resistance, voltage withstand, insulation, leakage current, NTC measurement, and airtightness testing in a single system.
High-Precision Measurement: Four-wire testing ensures measurement accuracy up to ±1μΩ, providing highly reliable data.
Flexible Expansion: Supports multi-point testing and custom import/export of test points to meet various wiring harness specifications.
Intelligent Management: Self-learning feature quickly generates test tables; supports scanning tests, label printing, and MES system integration.
High Safety and Stability: Accurate high-voltage testing and leakage current control reduce the risk of misjudgment.

Connector Wiring Harness Testing System

Instrument Advantages

DC5000V AC4000V (optional: DC6000V AC5000V)
One-stop test of multiple test items
Test items: (on-resistance, DC withstand voltage, AC withstand voltage, insulation solenoid valve, NTC, switch, airtightness)
Precision four-wire test, resistance accuracy 10μΩ
Insulation standard 10G0, optional 400GD
The number of points (32PIN/board) can be expanded more
Self-learning to quickly generate test tables
Points can be customized and imported and exported
Support scanning test, customized printing labels
Customizable plug-in MES docking
Test files are automatically saved (support multiple formats)
CSV XLSXPDF and WORD Format
User authority management, three-level management settings
System settings are simple, easy to understand and easy to operate

Specification

High Voltage test	SAIMR8000
Test Mode	Four- wire
Number of Points	32/64/128/256…2048 points (support expand if need)
Test Project	Test Range	Test Accuracy
OS Test (Max 40V/DC) (0.1mA-2A）	0-10 kΩ	±1%
OS Test (Max 40V/DC) (0.1mA-2A）	10k~10MΩ	±2%
Insulation Resistance Test	500KΩ-10GΩ(10V-1000V) Optional 10V-3000V Optional 400GΩ (±20%)	500kΩ~100MΩ: ±2%
		100MΩ~ 4GΩ: ±5%
		4GΩ~ 10GΩ: ±10%
DC Resistance Test	Full scale	<100mΩ: ±1%(1μΩ)
DC Resistance Test	Full scale	100mΩ-1kΩ: ±1%
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	10V-4000V (Optional 5kV,10kV)	Step value: 10V
DC Hi-pot Test	10V-6000V (Optional 6KV,10KV)	Step value: 10V
AC Leakage Current Test	0.01mA-12mA	Step value: 0.01mA
DC Leakage Current Test	0.1mA-6mA	Step value: 0.1mA
Diodes / Zener Diodes	0-40V	0.1 mA / 1 mA (test signal)
Dimensions (in mm)	Desktop 1500800900 (Support tailor-made)	Cabinet type 1200570630 (Support tailor-made)
Maximum Weight (in kg）	50	60
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.
